A pragmatic framework for why this matters
Accurate metrology is the difference between a lab curiosity and a product that performs in the field. In home energy storage R&D you quantify not only battery cell chemistry but the end‑to‑end losses that determine usable energy. That includes round‑trip efficiency and the often‑overlooked parasitic or auxiliary loads from BMS, thermal management, and inverter standby modes. These measurements also scale—lessons learned at the residential level feed into larger projects like utility scale battery storage deployments—and vice versa. This article gives a clear blueprint for setting up tests, avoiding common mistakes, and extracting usable metrics for design decisions.
Core goals: what to measure and why
Start with two primary goals: (1) quantify energy conversion losses over a charge–discharge cycle (round‑trip efficiency), and (2) separate continuous auxiliary draws from usable output. Supporting goals include measuring how efficiency changes with state‑of‑charge (SoC), depth‑of‑discharge (DoD), temperature, and cycle rate. These axes feed product-level KPIs such as usable kWh per nominal kWh, expected run‑time for backup scenarios, and lifetime energy throughput.
Key measurement axes and definitions
Keep terms clear and consistent:
- Round‑trip efficiency: energy out divided by energy in across a full cycle, accounting for inverter and converter losses.
- Auxiliary loads (parasitic loads): continuous draws by BMS, thermal management, displays, and communication modules that reduce net deliverable energy.
- State‑of‑health (SoH): capacity relative to nameplate, tracked over cycles to quantify degradation.
Limit jargon to what directly informs decisions—focus on repeatable, traceable metrics that match field use cases (backup, self‑consumption, time‑shift).
Recommended test setup and instrumentation
A compact, repeatable lab setup should include a programmable DC source/sink or bi‑directional power electronic testbed, a precision power analyzer, temperature control (ambient chamber or controlled air flow), and high‑accuracy voltage/current sensing (shunts or calibrated CTs). Integrate the device under test with its production BMS and inverter where possible; substituting bench supplies can misrepresent auxiliary consumption and control strategies.
Typical instrumentation:
- Power analyzer (±0.1% accuracy) for energy integration.
- High‑resolution coulomb counting for SoC correlation.
- Data acquisition synchronized across voltage, current, temperature, and CAN/Modbus messaging.
Test protocols: realistic profiles and cycle control
Design tests to reflect expected customer behaviour. Run baseline constant‑power cycles (e.g., 1C, 0.5C) for controlled comparisons, and then add real‑world profiles: diurnal PV charge, multi‑hour discharge for backup, and idle periods to quantify standby draws. Capture both instantaneous power and integrated energy over long durations—aux loads become visible only after hours or days of real operation.
Data processing, error sources, and common pitfalls
Measurement is only as good as processing. Synchronize time bases across instruments to avoid integration bias. Account for instrument offset and drift by running zero‑current baselines before and after long tests. Watch out for these frequent issues:
- SoC calibration errors from relying solely on voltage‑based estimates.
- Undetected auxiliary currents during supposed ‘idle’ phases—these accumulate into significant energy loss over weeks.
- Thermal coupling: an unregulated enclosure hides heating effects that change internal resistance and efficiency.
And do not forget to log controller state and firmware timestamps—control‑logic transitions can cause short, high‑loss events that skew cycle averages. —
Scaling lessons from grid projects (real‑world anchor)
Large installations have long emphasised metrology for system credibility. The Hornsdale Power Reserve in South Australia (commissioned 2017 at 100 MW / 129 MWh) highlighted how accurate performance data builds confidence with grid operators and regulators. The same discipline—consistent test rigs, traceable energy accounting, and transparent reporting—applies to home systems. When teams cross‑reference residential test outcomes with utility experience, they avoid over‑optimistic projections about deliverable energy and lifetime.
For those designing both ends of the spectrum, it helps to keep a single metrology doctrine that spans home systems to utility scale battery energy storage systems, so comparisons are apples‑to‑apples.
Common mistakes and fixes
Frequent missteps are easy to address:
- Ignoring low‑power auxiliary draws: measure over long durations and report per‑day kWh losses.
- Using mismatched converters: test with production inverters and DC/DC converters to capture real losses.
- Skipping environmental variation: run hot/cold cycles to bound performance and warranty claims.
Three golden rules for evaluation (Advisory)
1) Measure energy end‑to‑end: report usable kWh delivered under defined SoC and DoD windows, not just cell stack efficiency. 2) Isolate and quantify auxiliaries: express parasitic draw as kWh/day and percent of stored energy to make tradeoffs explicit. 3) Use traceable instrumentation and synchronized logs: time‑aligned voltage, current, temperature, and control states are essential for replicable results.

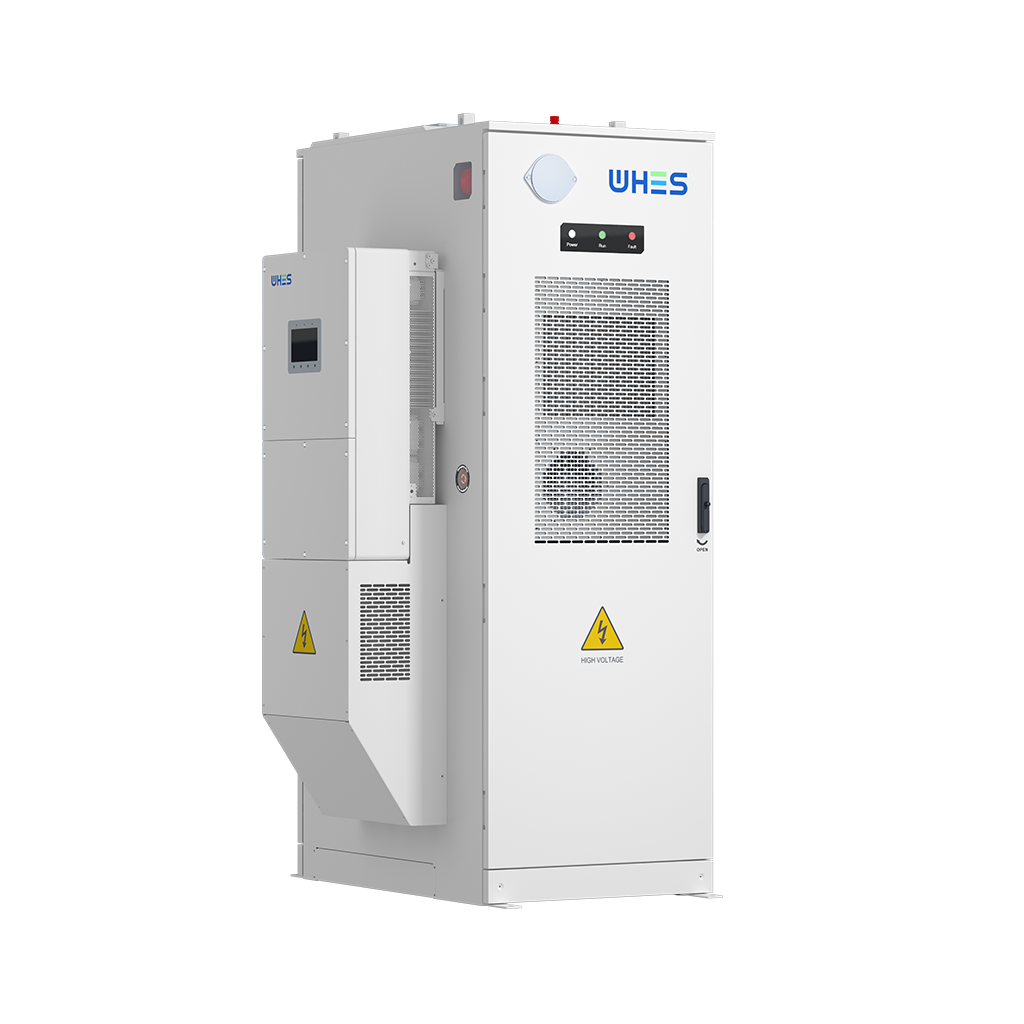

Follow those rules and your R&D outputs turn into credible product specs and predictable warranty exposures. Your metrology practice should flow into system selection and field validation—naturally aligning with partners that understand both residential nuance and grid‑scale rigor, like WHES. —
